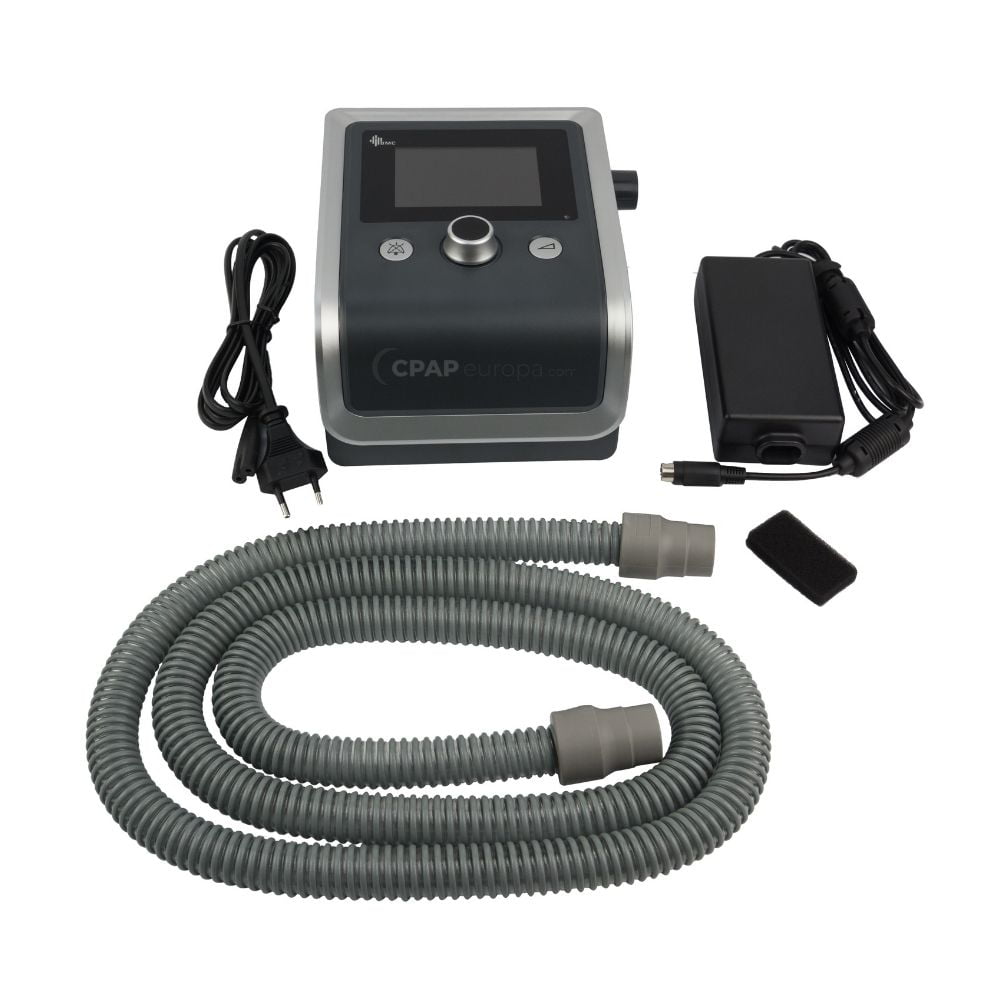

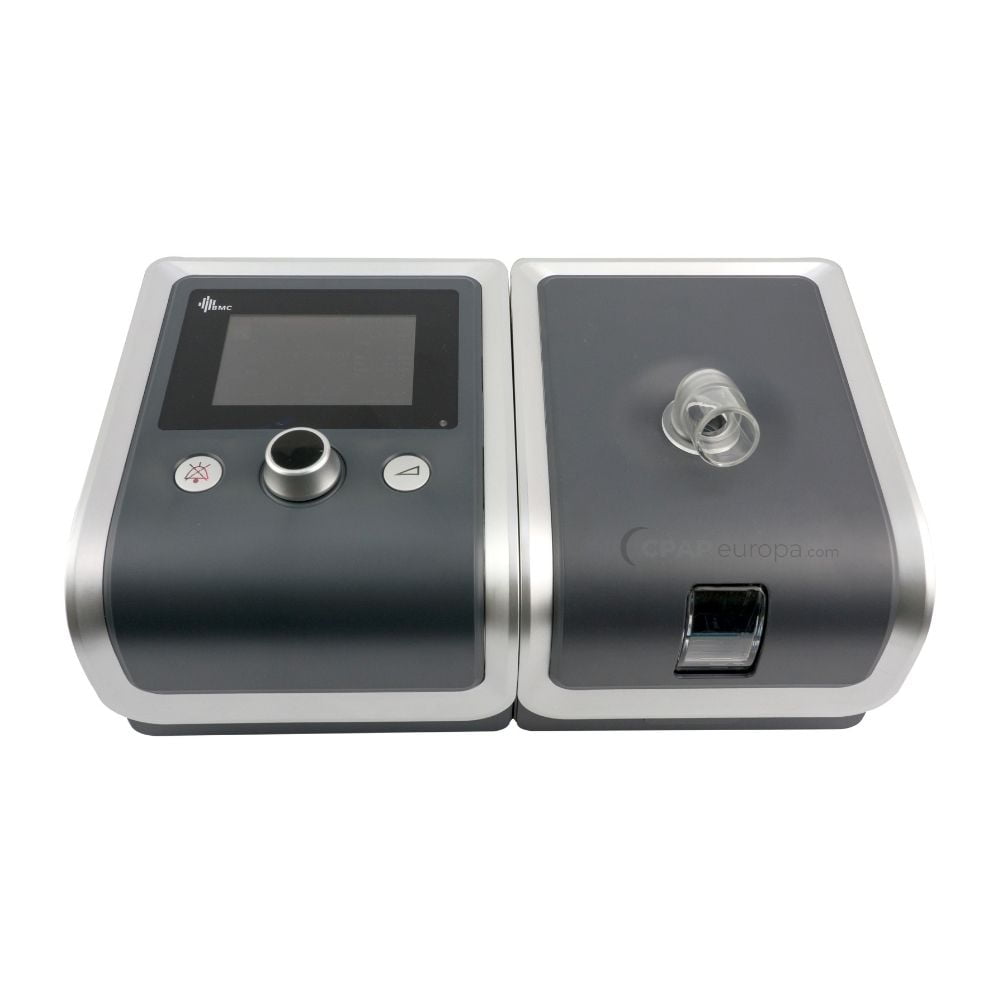

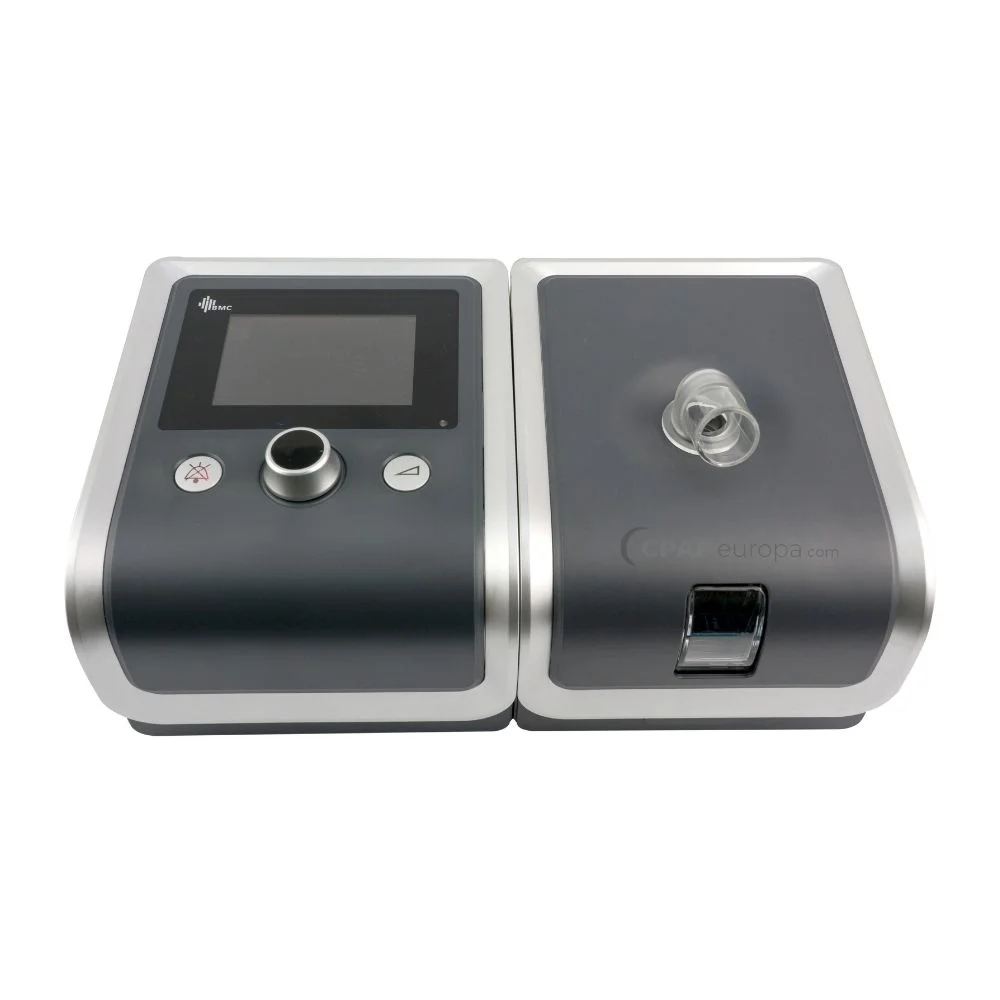

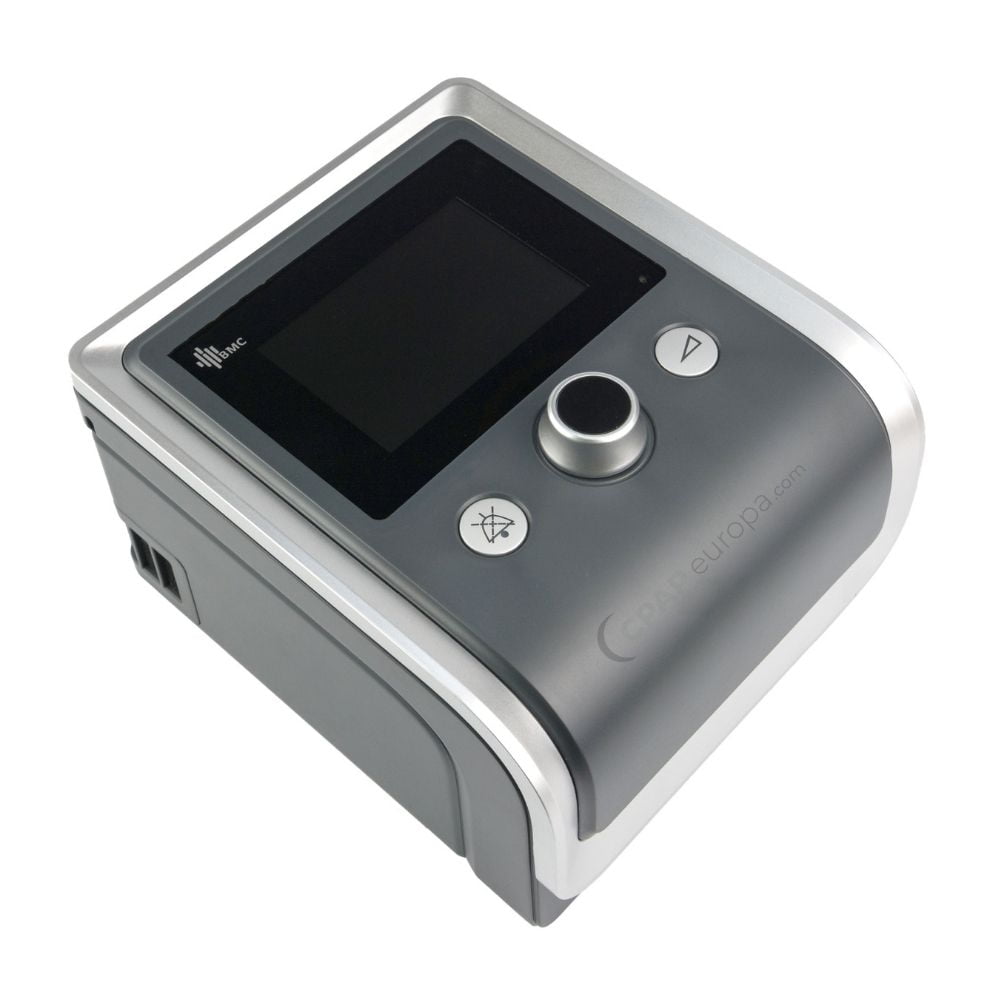

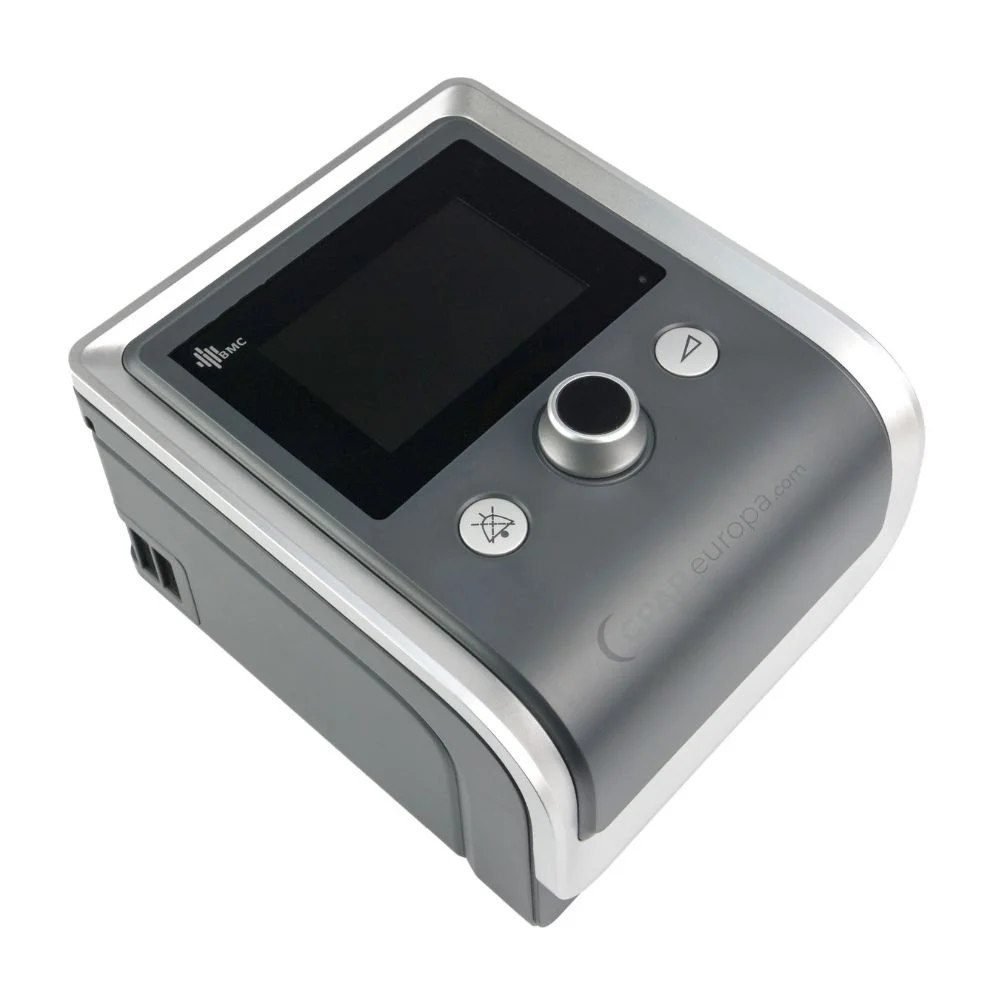

RESmart GII BPAP System Y-25T with iVAPS

2,600.00

RESmart GII BPAP System Y-25T – IVAPS Mode

The RESmart GII Y-25T system is an auto bi-level solution for patients with respiratory insufficiency.
This auto bi-level system also is the list of BPAP / Ventilators that have been approved for providing lung ventilation to patients with respiratory complications diagnosed with the new coronavirus COVID-19 in China.





Description

Description

RESmart GII BPAP System Y-25T – IVAPS Mode

The RESmart GII Y-25T system is an auto bi-level solution for patients with respiratory insufficiency. This auto bi-level system also is the list of BPAP / Ventilators that have been approved for providing lung ventilation to patients with respiratory complications diagnosed with the new coronavirus COVID-19 in China.



An intelligent technology, featured in the RESmart GII Y/U series, it delivers automatic solution for patients with OSA and/or respiratory insufficiency. Aligned with same platform as RESmart GII BPAP System, Y series adapt pressure automatically to patient’s needs and provide a better synchronization.



Made 3B Medical to maximize patient-device synchrony. The GII BPAP system tracks events on a breath-by-breath basis to ensure ultra-precise amount of bi-level pressure while guaranteeing patient comfort throughout the night.

Target Tidal Volume

Pressure support automatically adjusts according to target tidal volume as to improve hypoventilation. Real time monitoring includes Pressure, Flow, Expiratory tidal volume (Vte), Respiratory rate (RR), Minute ventilation (MV), Leak, Inspiration time (Ti), SpO2* and Pulse rate (PR)*.

Product Specificationс

  • Device Size Dimensions: 170 mm × 180 mm × 118 mm, or 290 mm × 180 mm × 134 mm (with the humidifier)
  • Weight: 1.5 kg, or 2.5 kg (with the humidifier)
  • Mode of Operation Continuous
  • Work Mode CPAP, S, AutoS, AutoCPAP, S/T, T
  • SD Card -SD card can record patient data and fault information.
  • AC Power Consumption 100 – 240 V ~ 2 – 1 A, 50 / 60 Hz
  • Pressure Range IPAP: 4.0 ~ 25.0 hPa (only applies to Y-25T, U-25T)
  • EPAP: 4.0 ~ 25.0 hPa (only applies to Y-25T, Y-30T, U-25T, U-30T, U-30AT)

Ventilation efficacy

Advanced leakage compensation promises adequate volume support. Ti Control, I/E Sense and Rise time guarantee better ventilation synchronization.

Features

  • Real time monitoring: Tidal Volume (Vt), Respiratory rate (Res Rate), Minute ventilation (Min Vent), Leakage (Leak);
  • Quick and easy operation;
  • Slow and gentle Ramp;
  • Innovative tracking technology for accurate and comfortable therapy;
  • Unique sensitivity settings ensure better comfort during individual therapy;
  • Auto on/Auto off function;
  • Power off alert;
  • Tube & mask disconnected alert;
  • Automatic leakage and altitude compensation;
  • Multi-language system
  • SpO2 Kit: Blood oxygen saturation and pulse rate display.



ECO Smart Technology

The ECO Smart heating system boasts an innovative dual water chamber design providing optimum humidity and temperature during therapy. ECO Smart delivers the optimized humidity level through the heating chamber, while ensuring real time compensation and water quantity control throughout the night. This smart technology will also help you keep the water bills low thanks to its high efficiency rating.

3.5-inch Color LCD Display

The LCD color display of the RESmart GII shows rea-time pressure and flow wave data.

Easy data access whenever you need it

With RESmart GII and it’s built-in iCode and SD card records you can viewed and evaluate your sleep apnea treatment using the RESmart PC software or BMC+ iCode smart phone App

Ti Min/Ti Max Ensure inspiration time

Ti Min/Ti Max feature for more effective treatment compared to other competitive bi-level devices of the same class.



iCode II

  • Compliance Data is encoded by QR code
  • Google play and APP store apps are available
  • Dynamic parameters adjustment
  • Multiple data retrieval (SD Card/ iCode II/ WiFi)




Warranty
2-Year Manufacturers Warranty.




Technical specifications

Technical specifications

Device Size Dimensions: 170 mm × 180 mm × 118 mm, or 290 mm × 180 mm × 134 mm (with the humidifier)
Weight: 1.5 kg, or 2.5 kg (with the humidifier)
Mode of Operation Continuous
Work Mode CPAP, S, AutoS, AutoCPAP, S/T, T
SD Card -SD card can record patient data and fault information.
AC Power Consumption 100 – 240 V ~ 2 – 1 A, 50 / 60 Hz
Pressure Range IPAP: 4.0 ~ 25.0 hPa (only applies to Y-25T, U-25T)
EPAP: 4.0 ~ 25.0 hPa (only applies to Y-25T, Y-30T, U-25T, U-30T, U-30AT)

Downloads

Downloads

FAQ

FAQ

Q. What is a BiPAP device used for?
A. A BiPAP device is primarily used in sleep apnea treatment, respiratory conditions, and lung disease.

Q. Where are RESmart devices manufactured?
A.
The RESmart CPAP and BiPAP devices by BMC Medical are manufactured in China. Headquartered in Beijing, China, BMC Meical is the leader in the development of home respiratory care devices in China.

Q. What are the main benefits of using a mid-range RESmart CPAP device instead of a higher-range model?
A. The RESmart respiratory care devices such as the GII are often preferred by customers looking for reliability, quiet operation and simplicity of settings – all without breaking the bank.

Q. Does the RESmart GII BiPAP come with documentation in languages other than English?
A. Yes. You can download the documentation in a language other than English from the BMC website.
