ResMed Astral 150 Ventilator

8,500.00

IN STOCK

  • At only 7 lbs, Astral is lighter than the market-leading life support ventilator
  • User-friendly menu and touch-screen big button features make it easy to operate
  • Quickly switch between mouthpiece or mask ventilation without changing adapters. Switch programs with just a few buttons
  • Alarms notify caregivers and healthcare providers when a potential issue arises

The ResMed Astral 150 is a simple, yet powerful ventilation device, offering portable, easy to use ventilation for patients with respiratory disorders. The Astral series ventilators deliver impeccable non-invasive and invasive treatment for patients weighing more than 11 lbs. The devices come with both internal and external battery options as well as a variety of synchrony functions for measuring and compensating for circuit impedance, without sacrificing accuracy in ventilation monitoring.

If you are looking to make life support ventilation straightforward and efficient, while spending less time spent on new device training, the ResMed Astral 150 is the right choice.

SKU: 27003 Category:
Description

Description

ResMed Astral 150 Ventilator

Astral 150 comes with all the features of Astral 100, plus FiO2 monitoring and double limb circuit functionality. This ventilator comes with an RCM Module (ResMed Connectivity Module) allowing the Astral to connect to AirView, ResMed’s patient monitoring tool. The AirView app provides direct access to important patient data. In addition, the Astral 150 features an remarkable power-to-weight ratio as well as an easy learning curve for clinicians and caregivers. The device’s responsive algorithms ensure adaptive, personalized ventilation throughout therapy.

The Astral 150 sports a smart ventilation function, enabling fast and easy switching from mask to MPV without you having to change the circuit.

Whether you are home or in a hospital environment, the ResMed Astral 150 life support ventilators offer real freedom for users, caregivers and clinicians.

 Features

  • Includes all the standard features of Astral 100, plus FiO2 monitoring and double limb circuit capabilities;
  • AirView connectivity through the ResMed Connectivity Module (RCM);
  • Full access to key patient data;
  • Easy learning curve for clinicians and caregivers;
  • Responsive algorithms for adaptive, personalized ventilation;
  • Smart mouthpiece ventilation allows for fast and easy switching from mask to MPV – no change of circuit required.
  • Fully compatible with Resmed masks

Safety and security

The ResMed Astral 150 packs a wide range of safety features to offer you a peace of mind while you’re at home. Extended monitoring capabilities and lightweight design are some of them. The Astral guarantees up to 16 hours of continuous power in order to provide patients with confidence they need to pick up and go.

Easy to use

For clinicians and caregivers, the Astral 150 is easy to use thanks to its intuitive interface and user-friendly features. The device features a big button technology, program naming options and quick setup assistant.

Smart, yet so simple

The ResMed Astral 150 boasts a simple, yet highly sophisticated technology engineered for both invasive and non-invasive ventilation. This versatile ventilator delivers flexible therapy options, including ResMed iVAPS™ with optional AutoEPAP, a mode well-suited for COPD patients. In addition to that, the Astral 150 comes with remote patient monitoring capabilities, allowing you ton align with your team of HMEs, clinicians and physicians to optimize patient care.

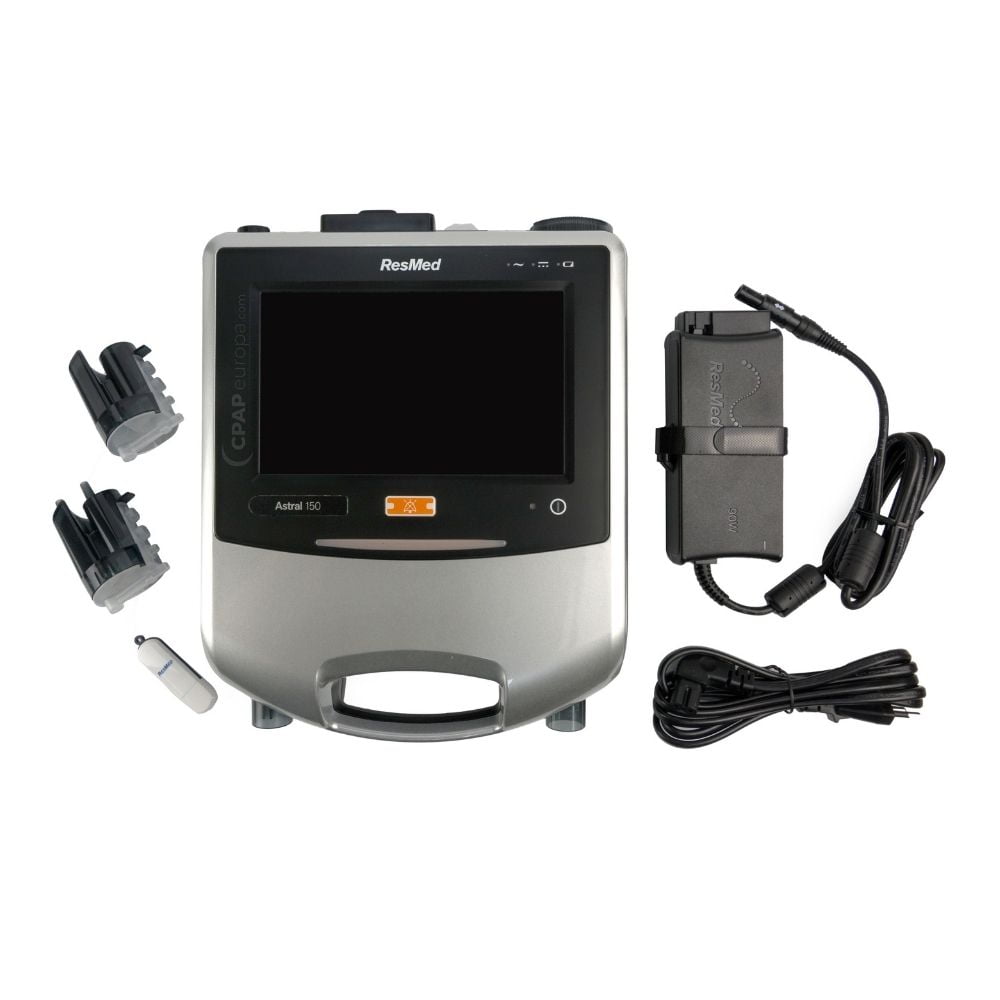

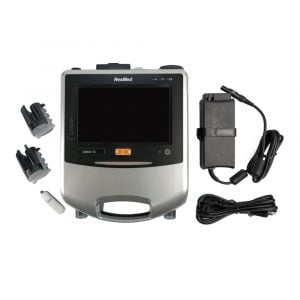

Package includes:

ResMed Astral Ventilator





Express shipping available for all EU countries and the US



1-Day TNT Delivery available for

Austria, Belgium, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland

Technical specifications

Technical specifications

Intended useLife support for patients above 11 lbs (5 kg) Life support for patients above 11 lbs (5 kg)
CircuitSingle circuit with leak • • Single circuit with valve • • Double circuit
TherapyValve circuit therapy: CPAP, ACV, PACV, P-SIMV, V-SIMV, PS • • Leak circuit therapy: CPAP, ST, PAC • • Manual breath • Sigh breath (recruitment) • Apnea ventilation Volume and pressure Volume and pressure Preset programs 2 4
Pressure range and settingsDelivered Pressure (cm H2 O) 2–50 (leak circuit) 0–50 (valve circuit) 2–50 (leak circuit) 0–50 (valve circuit) Delivered Tidal Volume (cm H2 O) Adult: 100 to 2500 mL Pediatric: 50 to 300 mL Adult: 100 to 2500 mL Pediatric: 50 to 300 mL Respiratory rate Adult: Off, 2 to 50 bpm Pediatric: Off, 5 to 80 bpm Adult: Off, 2 to 50 bpm Pediatric: Off, 5 to 80 bpm DATA SpO2 monitoring Optional Optional FiO2 monitoring Optional
AlarmsA wide range of settable alarms are available including FiO2 and SpO2 when connected.
DimensionsWeight 7 lbs (3.2 kg) 7 lbs (3.2 kg) Dimensions (L x W x H) 11.22″ x 8.46″ x 3.6″ (285 mm x 215 mm x 93 mm) 11.22″ x 8.46″ x 3.6″ (285 mm x 215 mm x 93 mm) Internal battery Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh. 8 hour run time Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh. 8
Single circuit with leakYES
Single circuit with valveYES
Double circuitYES
Therapy circuit with valveCPAP, ACV, PACV, P-SIMV, V-SIMV, PS
Therapy circuit with leakCPAP, ST, PAC
Manual breathYES
Sigh breathYES
Apnea ventilationVolume and Pressure
SpO2 monitoringOption
FiO2 monitorinYES
7 days high resolution data 25 Hz flow and pressureDisplay and Download
365 days of statistical data per programDisplay and Download
ALARMSWide range adjustable alarms, incl FiO2 and SpO2
