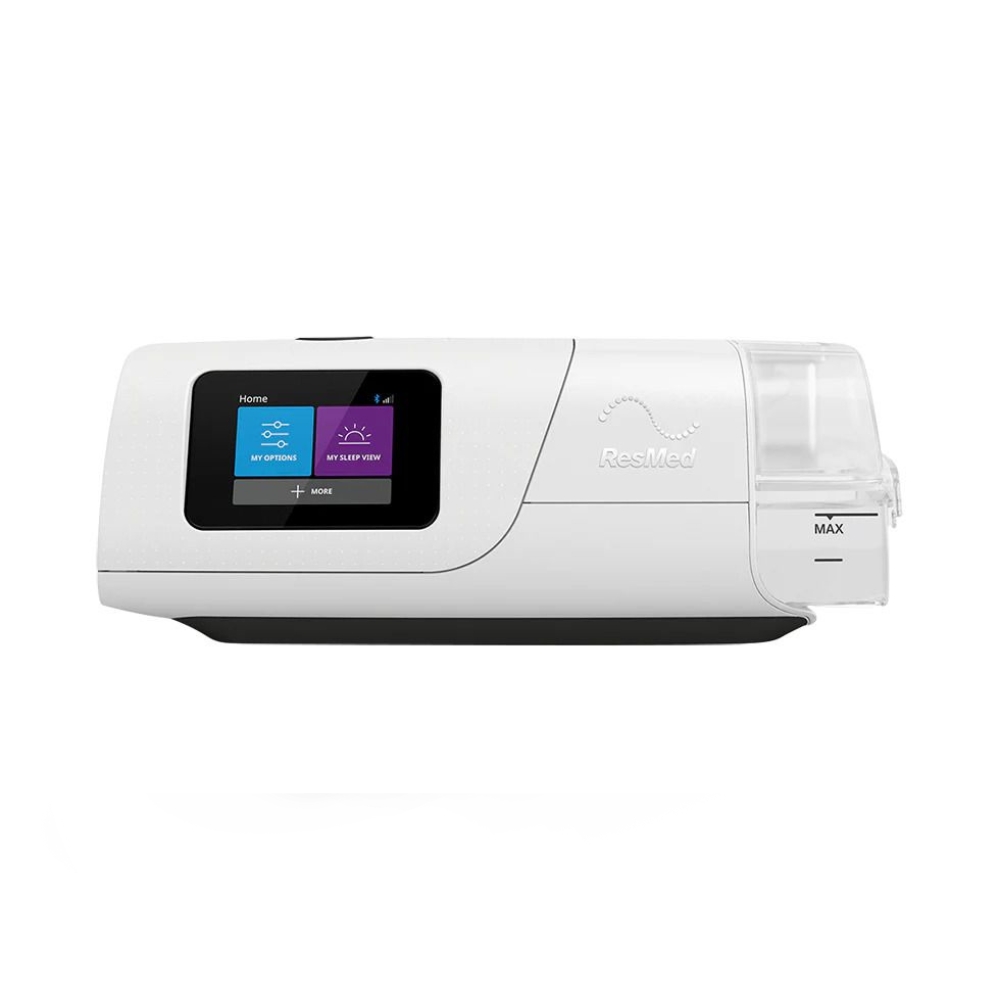

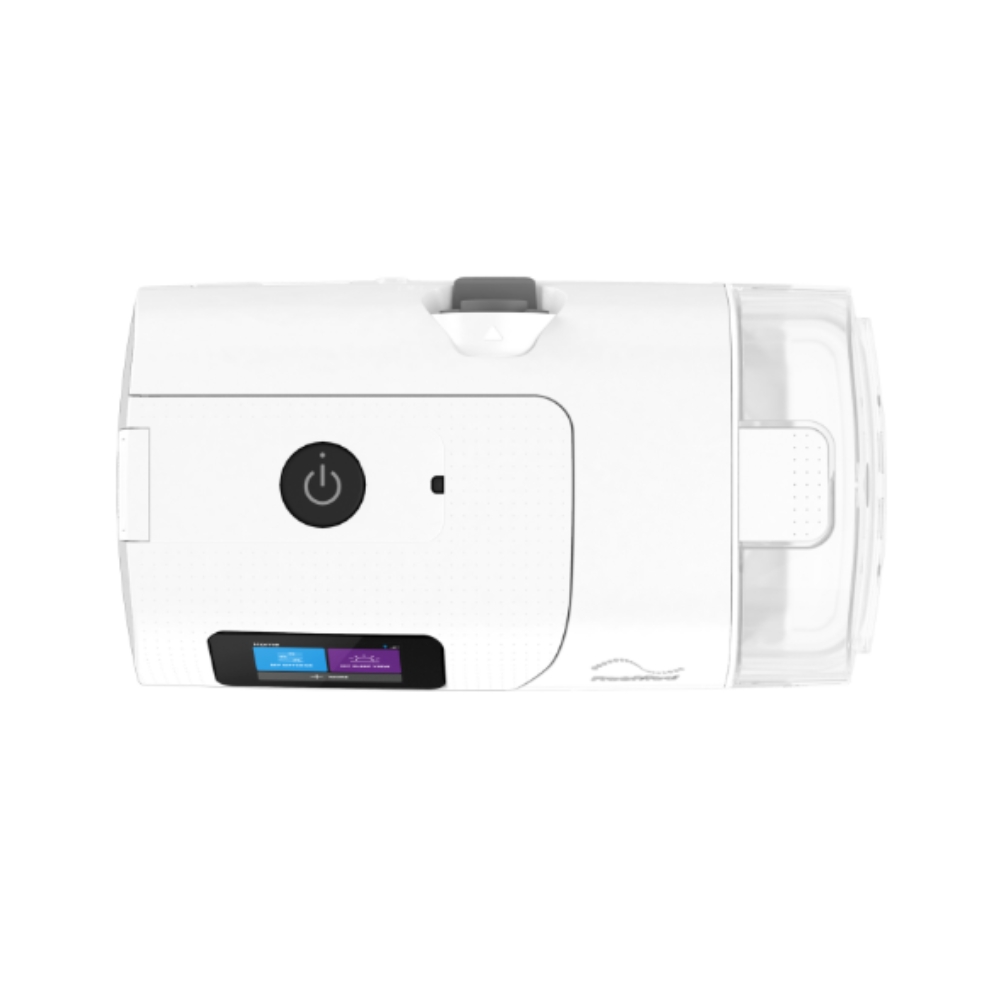

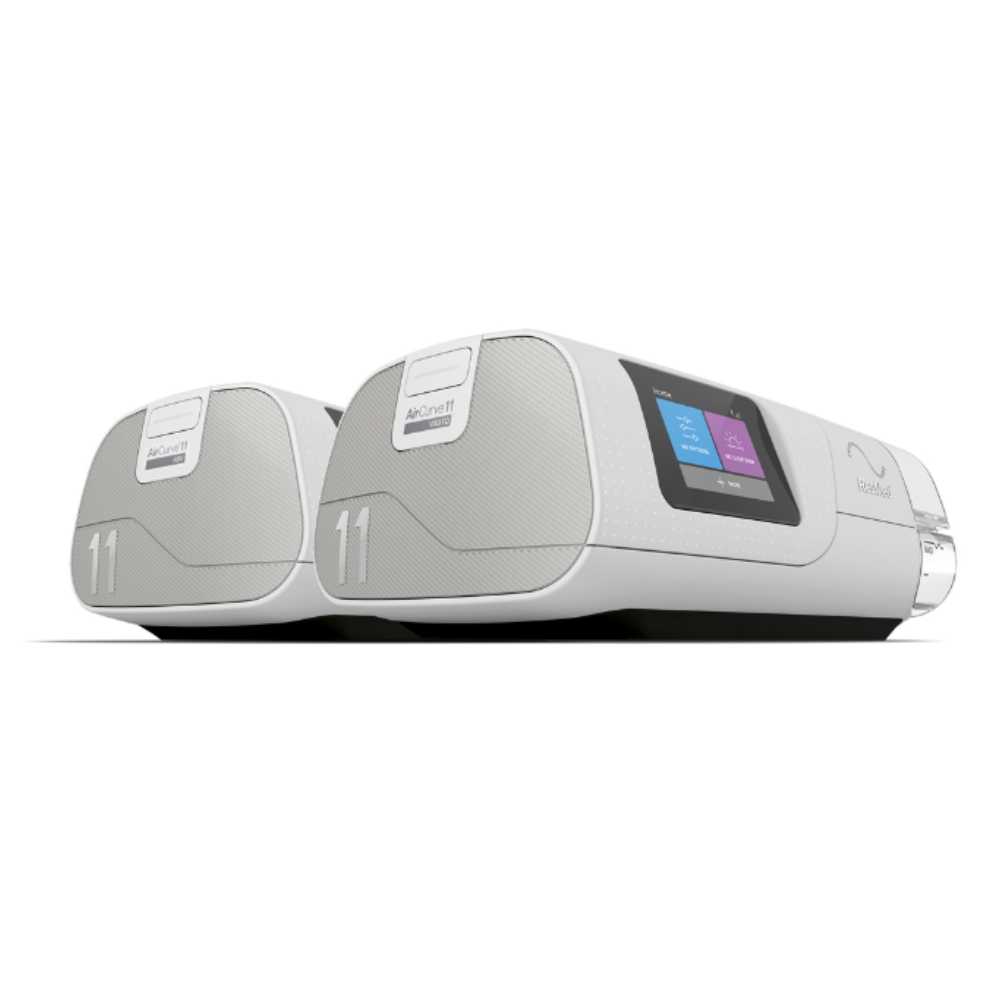

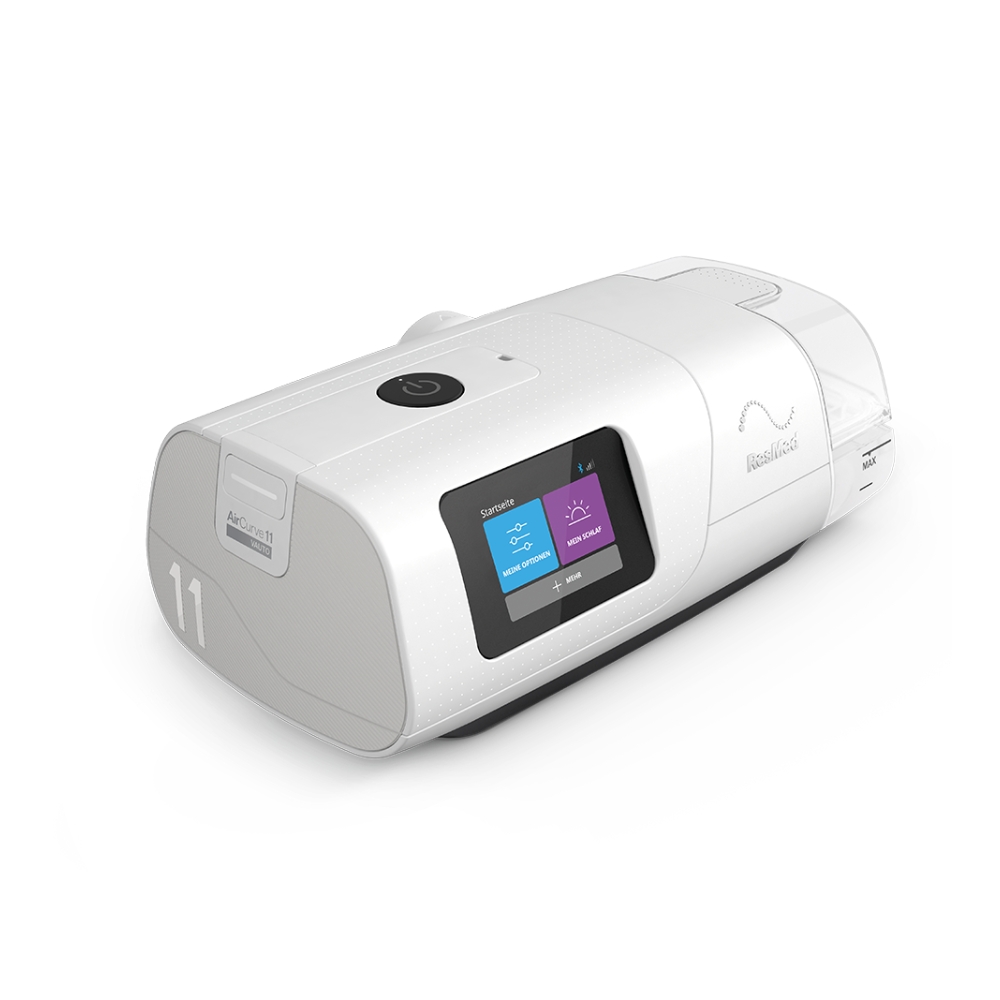

ResMed AirCurve 11 S BiLevel Device

Description

The ResMed AirCurve™ 11 S is a state-of-the-art BiLevel device designed to provide effective and comfortable therapy for individuals with obstructive sleep apnea (OSA). Building on the success of the AirSense platform, the AirCurve 11 combines a sleek, modern design with powerful, user-centric technology to make your therapy journey simple and effective.

Important: Therapy Pressure for Your AirCurve™ 11 S
After your purchase, please provide us with your required therapy pressure and your prescription if you want us to set the pressure for your device.
We will ship the device with its factory settings if no information is received. Note that only qualified specialists are authorized to change the pressure settings and you cannot do it yourself.

Key Features:

• Intuitive Touchscreen Display: The vibrant and easy-to-use color touchscreen simplifies navigation and allows for quick adjustments to your settings.
• Personal Therapy Assistant (PTA): This interactive feature guides you through equipment setup and helps you acclimate to therapy with a Test-Drive function, ensuring you start with confidence.
• Care Check-In: The device periodically asks simple, personalized questions about your therapy experience, providing you and your healthcare provider with valuable feedback.
• Integrated Heated Humidifier (HumidAir™ 11): The built-in humidifier is designed to deliver optimal humidity levels for greater comfort, with an easy-to-clean water chamber.
• myAir™ App Integration: Connect the device to ResMed’s myAir app via Bluetooth to track your therapy progress, view daily sleep scores, and receive personalized coaching and tips.

Advanced Therapy Algorithms:

• • Easy-Breathe Waveform: Mimics the natural rhythm of your breathing for a more comfortable experience.
  • Vsync Leak Management: Continuously monitors and compensates for unintentional mask leaks to maintain therapy pressure.
  • TiControl™: Monitors your breathing patterns and sets minimum/maximum inspiratory time limits to prevent cycling issues.
• Over-the-Air Updates: The device can receive software and feature updates remotely, ensuring your machine is always running the latest technology without needing a service visit.
• Quiet Operation: Engineered for minimal noise, the AirCurve 11 ensures a peaceful environment for you and your partner.

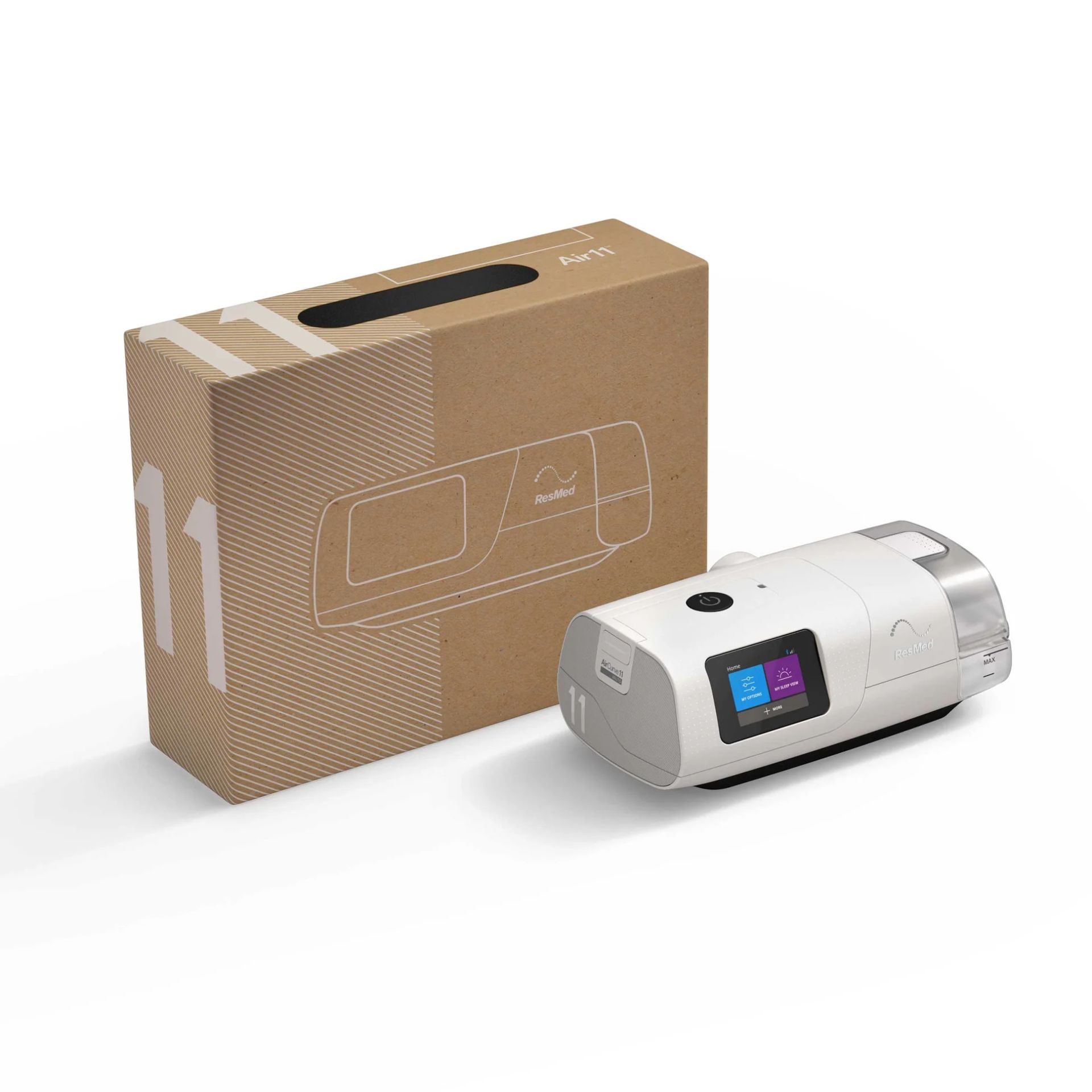

What’s Included in the Box:

• AirCurve 11 S BiLevel device
• HumidAir™ 11 humidifier (water chamber)
• SlimLine™ breathing tube
• Power supply unit and cord
• Travel bag
• Standard filter
• User manual

FAQ

Getting Started & Adjusting Comfort

Q: How can I adjust comfort settings like humidity and Ramp Time on my AirCurve 11?
A: While your Home Medical Equipment (HME) provider initially configures your AirCurve 11, you have the flexibility to fine-tune certain comfort settings yourself.

Navigate to My Options on your device’s screen by turning and pressing the dial. Here you can personalize the following:

• Humidity Level: The built-in humidifier helps prevent a dry nose or mouth. The “Climate Control Auto” setting is recommended for optimal performance. However, you can set it manually from 1 (lowest) to 8 (highest).

  • If you experience dryness: Turn the humidity level up.

  • If you notice moisture in your mask: Turn the humidity level down.

• Ramp Time: This feature gradually increases the pressure from a low starting point to your prescribed level, making it easier to fall asleep. You can set the ramp duration from 5 to 45 minutes, or turn it off completely.

For any adjustments beyond these basic settings, please contact your HME provider.

Q: Are there tools to help me get accustomed to therapy?
A: Yes! The AirCurve 11 includes the Personal Therapy Assistant, an exclusive feature accessed via the myAir™ app. It provides voice-guided video instructions for setup and a Test Drive function, which lets you experience the therapy pressure in a controlled way to help you get comfortable.

Q: What’s the process for getting an AirCurve 11, and what about cost and insurance?
A: Acquiring an AirCurve 11 involves a few key steps:

1. Obtain a Prescription: A prescription for a BiLevel PAP device is required from your doctor.

2. Verify Insurance Coverage: Contact your insurance provider to understand what your plan covers regarding the device and supplies.

3. Purchase from a Supplier: You can then purchase your device from a local or online HME store.

Maintenance & Cleaning

Q: What is the recommended cleaning routine for the AirCurve 11?
A: Regular weekly cleaning is essential for hygiene and device performance. The process takes about 5 minutes.

Weekly Cleaning Guide:

• What You’ll Need: A sink, warm drinkable water (around 86°F / 30°C), mild soap, and a clean towel.

• Step-by-Step:

  1. Unplug the device and disassemble the parts.

  2. Wash the water tub and air tubing in warm, soapy water. Never use a dishwasher or washing machine.

  3. Rinse both parts thoroughly with clean water.

  4. Allow them to air dry completely, away from direct sunlight or heat.

  5. Wipe the exterior of the AirCurve 11 machine with a dry, clean cloth.

Q: Is it safe to use ozone or UV light cleaners with my AirCurve 11?
A: No. ResMed has not validated ozone or UV cleaning products for use with its devices. Using them can cause discoloration or damage to your equipment. Prolonged use of an ozone device can damage the machine’s motor, and any damage caused by these unapproved cleaning methods will void the ResMed limited warranty.

Q: When should I replace my AirCurve 11 supplies (water tub, tubing, filter)?
A: Inspect your supplies regularly for wear and tear. Here’s a general guide:

• Water Tub: Replace if it is leaking, cracked, pitted, cloudy, or if the seal is damaged.

• Air Tubing: Replace if you find any holes, tears, or cracks.

• Air Filter: Check the filter twice a month. Replace it when it becomes clogged or worn out to prevent exposure to airborne particles.

Contact your HME supplier to ask about a “resupply” program for receiving replacement parts on a regular schedule.

Support & Compatibility

Q: Who should I contact if I have problems or questions about my therapy?
A: Your primary point of contact is your Home Medical Equipment (HME) supplier—the store where you purchased your machine and mask. They are responsible for all clinical support, including answering questions about settings, troubleshooting issues, and helping you find the right equipment for your comfort.

Q: Which masks work with the AirCurve 11?
A: While most ResMed masks are compatible, you should always confirm the correct mask setting for your specific model. Recommended compatible masks include:

• Full Face: AirFit™ F30i, AirFit F30, AirFit F20, AirTouch™ F20

• Nasal: AirFit N30i, AirFit N30, AirFit N20, AirTouch™ N20

• Nasal Pillow: AirFit P30i, AirFit P10

Q: How do I pair my AirCurve 11 with the myAir app?
A: Ensure Bluetooth® is active on your phone. Open the myAir app and follow the on-screen instructions to connect. When prompted, a four-digit code will appear on your AirCurve 11 screen. If it doesn’t, navigate to the Home menu, select +More, and then tap myAir on your device.

Advanced Therapy Information

Q: What is ASV (Adaptive Servo-Ventilation) therapy?
A: Important Safety Note: ASV therapy is not suitable for individuals with chronic, symptomatic heart failure (NYHA 2-4) with reduced left ventricular ejection fraction (LVEF ≤ 45%) and moderate to severe predominant central sleep apnea. Please consult your doctor.

ASV is a specialized therapy that uses an advanced algorithm to treat central sleep apnea. It monitors your breathing and provides adaptive pressure support when it detects a pause in your breath.

Technical specifications

Technical Specifications:

• Pressure range: CPAP: 4–20 cm H2O (4 hPa) CPAP; S-mode: IPAP: 4–25 cm H2O (4–25 hPa), EPAP: 2–25 cm H2O (2–25 hPa), Maximum pressure = 25 cm H2O (25 hPa)
• Sound pressure level: 26 dB
• Dimensions: 138.5 mm x 236.8 mm x 94.5 mm
• Weight (with humidifier): 1.2 kg
• Approval: RTCA/DO 160 for all flight phases (suitable for flight and travel)
