Home » Shop » CPAP Machines » BiPAP Machines » ResMed Lumis 150 VPAP ST

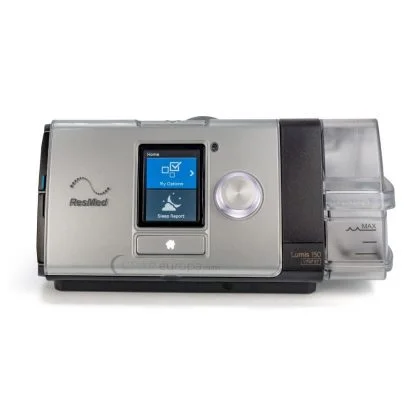

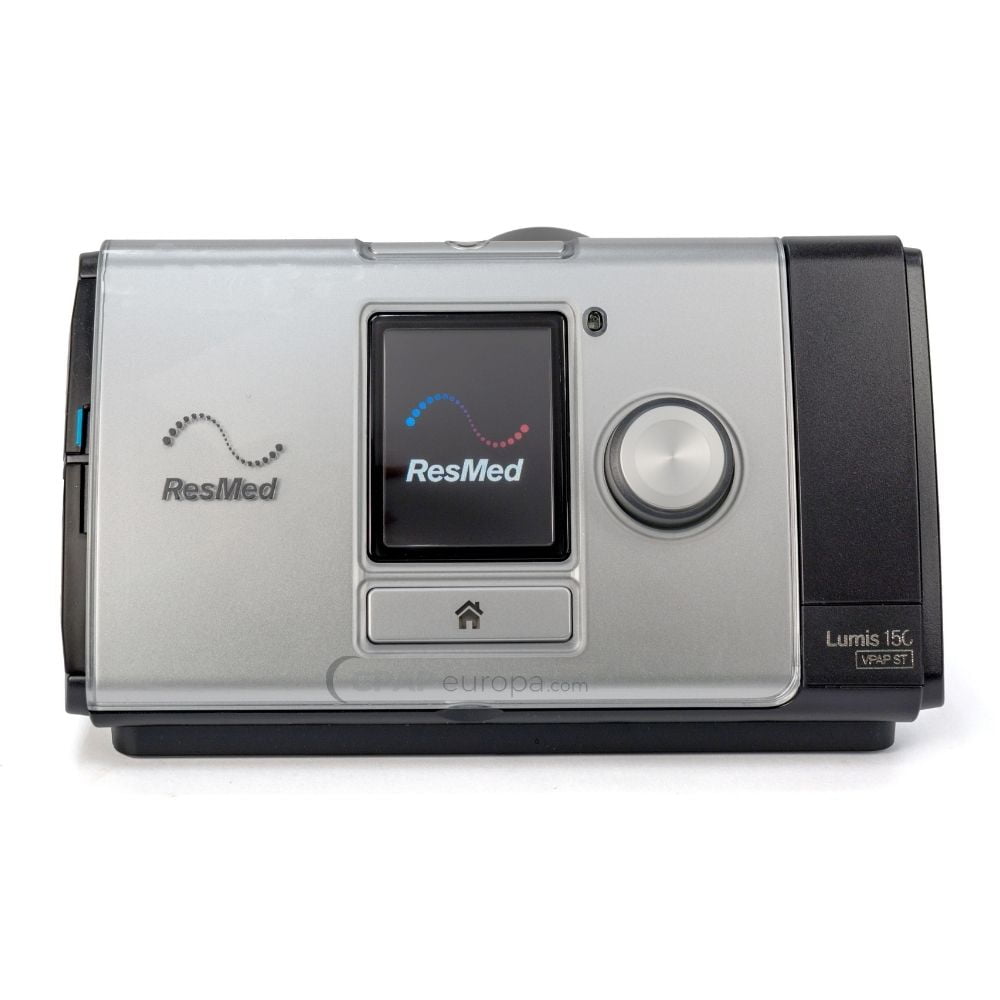

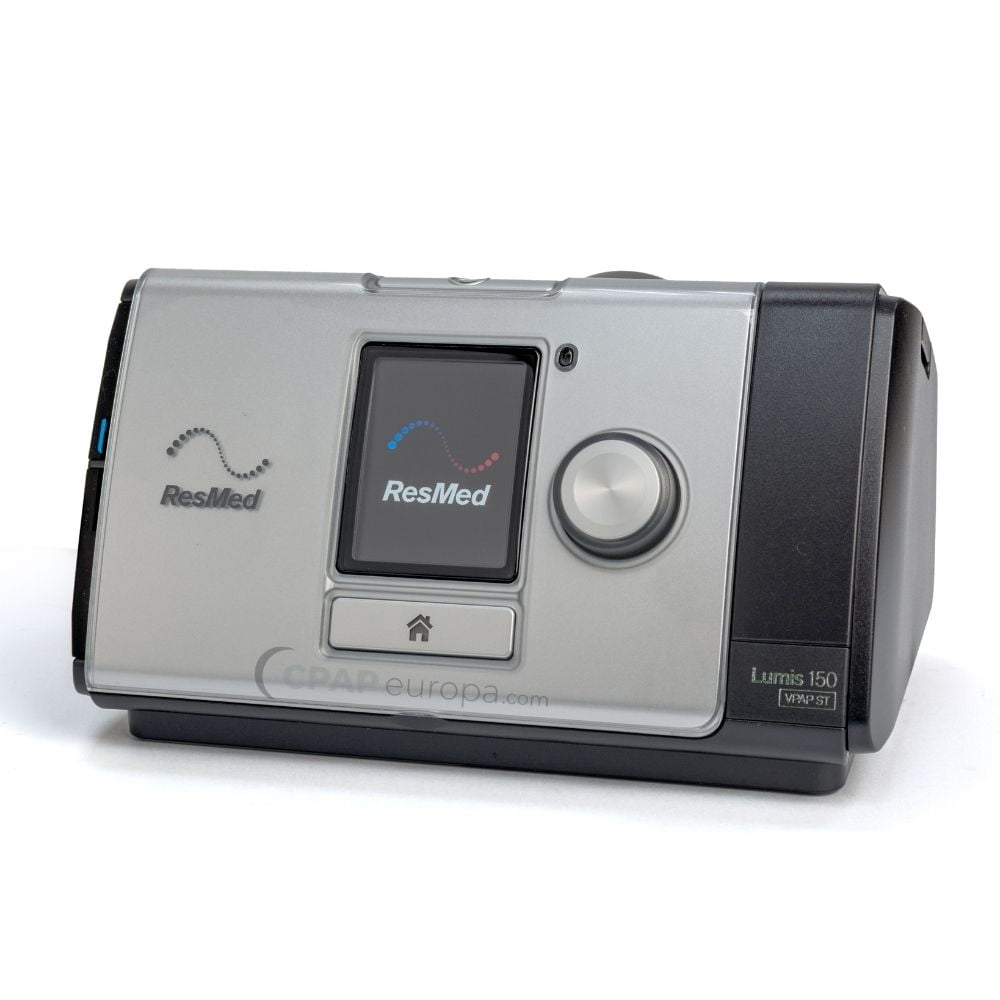

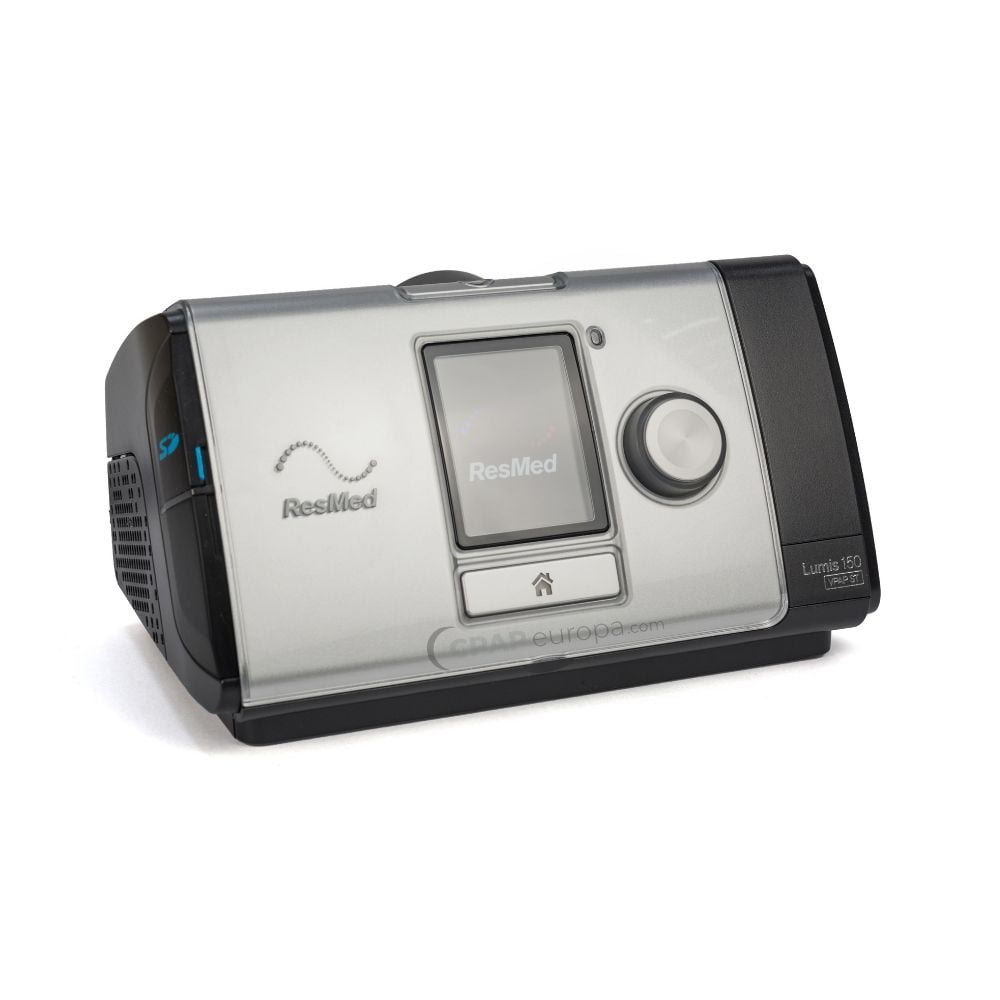

ResMed Lumis 150 VPAP ST


The ResMed Lumis 150 is a non-invasive ventilator designed for spontaneously breathing, non-dependent patients suffering from respiratory insufficiency. The device is set up to provide personalised ventilation of high efficiency and the option to customise therapy for the specific patient’s condition.

The individually-responsive technology in  Lumis 150 automatically monitors and adapts the therapy to the patient’s changing needs. In addition to the personalised therapy possibility. Lumis 150 VPAP comes with convenient, built-in wireless connectivity, allowing for easy monitoring of your progress as well as remote customisation of the settings to meet your individual therapy needs.

  • Non-invasive ventilator
  • Featuring iVAPS (intelligent Volume-Assured Pressure Support) mode
  • Intelligent Backup Rate (iBR)
  • Optional AutoEPAP technology




ResMed Lumis 150 VPAP ST – Non-invasive Ventilator

Easy to set up and even easier to use, Lumis 150 comes with built-in wireless connectivity to ResMed’s cloud-based patient management system AirView. AirView allows for remote monitoring of your treatment, making it easy for your doctor to track your progress. What’s more, the Lumis 150 features an intelligent Backup Rate (iBR) function for optimal patient comfort and the opportunity to breathe spontaneously.


  • iVAPS learns your unique alveolar ventilation, sets appropriate targets, then provides smooth pressure support to suit.
  • intelligent Backup Rate (iBR)* gives you maximum opportunity to trigger the ventilator. Staying out of the way until you need it (ie, if you cannot trigger the ventilator), iBR adds backup breaths to comfortably bring you back to target.
  • AutoEPAP** monitors your upper airway and auto-adjusts the expiratory pressure delivered to address any (blockages) obstructions.
  • Vsync, TiControl™ and Trigger and cycle are technologies that work together to manage any mask leak, synchronise with your breathing, and encourage you to breathe spontaneously – so you can receive the right level of ventilation as you need it.
  • Elegant, user-friendly design. Designed with you in mind, Lumis is easy to navigate and use.
  • Climate Control Auto for automatic humidification. When used with a HumidAir™ heated humidifier and ClimateLineAir™ heated tube, Lumis delivers humidification automatically – no settings to change and no complicated menus to navigate.
  • Ramp for extra comfort. Lumis offers a Ramp feature to help you ease into each therapy session.

Operating pressure range

  • S, ST, T, PAC, iVAPS: 2 to 25 cm H2O (2 to 25 hPa)
  • CPAP: 4 to 20 cm H2O (4 to 20 hPa)

Elegant design

Boasting ResMed’s clean and stylish design, Lumis 150 also comes with a clean user interface, designed with the patient in mind. The intuitive and simple user interface is easy to navigate and view, allowing you to effortlessly personalise the comfort settings according to your personal preference. In addition, the Lumis provides important insight into your progress thanks to the sleep report at the end of every session.

Built-in simplicity

The Non-invasive Ventilator ResMed Lumis 100 VPAP ST displays your SpO2 and pulse rate on the screen even before therapy has begun. This way you can seamlessly tailor your ventilator’s settings to your specific condition. What’s more, Lumis 150 ST also comes with an “Essentials” mode for patients who would like to receive their therapy without worrying about difficult settings or menus. What you do is simply press the Start button and your ventilator takes care of the rest!


Lumis 150 ST with optional DC / DC Converter 24V / 90W allows you to use your device, even with the HumidAir humidifier and ClimateLineAir. The device takes power from a 12V or 24VDC power source from a car, boat or any other battery-powered device.

Optional ResMed battery system – PowerStation II

The optional ResMed battery system called PowerStation II delivers up to 12 hours of autonomy.

FFA Approved

ResMed Lumis 150 VPAP ST is confirmed for use on an airplane as it meets meets the requirements of the Federal Aviation Administration (FAA) in all phases of the air travel.

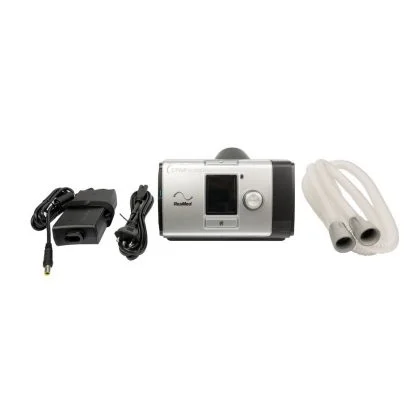

In the box:

Non-invasive Ventilator ResMed Lumis 150 VPAP ST


2-Year Manufacturers Warranty.

Technical specifications

Technical specifications

CPAP (continuous positive Airway pressure)Yes
S (Spontaneous)Yes
T (Timed)Yes
ST(Spontaneous-Timed) with optionalYes
PAC(Pressure Assist-Control)Yes
iVAPS with optional Auto EPAPYes
Trigger and cycleYes
Ramp downYes
Climate Control AutoYes
Essentials modeYes
Dimensions (M x W x H)116mm x 225mm x 150mm
Weight1115 gr
Noise26.6dBA (at 10cmH2O pressure)
Operating pressure range4-25 cmH20
Wireless Module Technology2G GSM
Power supply90W
Power supply range100-240V, 50-60Hz
Rated for use on an airplane110V, 400Hz
Typical power consumption53W
Maximum power consumption104W
FFA approvedYES
Warranty2 Years




Q. What does VPAP stand for?
A. VPAP stands for Variable Positive Airway Pressure device with auto-adjusting, bilevel breathing, used for treating sleep apnea and other sleep related disorders. VPAP machines are very similar to BiPAP machines in that they deliver two separate levels of pressure optimized to correspond to the patient’s natural inhalation and exhalation.

Q. How is a VPAP device different from APAP and CPAP devices?
A. VPAP (variable positive airway pressure) machines are mainly used to help patients who would normally resist CPAP therapy or find it difficult to adjust to it.

Q. Which patients benefit the most from VPAP therapy?
A. In addition to sleep apnea treatment, VPAP machines are also used to treat patients in need of ventilatory support. This includes patients suffering from central sleep apnea, chest wall deformity, COPD, and neuromuscular conditions.

Q. Is a BiPAP or CPAP better for sleep apnea treatment?
A. The large majority of patients find BiPAP more comfortable than the single pressure devices such as CPAPs. The main difference between CPAP and BiPAP devices is that the latter have two pressure setting: a high pressure setting for inhalation and a low pressure setting for exhalation.

Q. What is a BiPAP device used for?
A BiPAP device is primarily used in sleep apnea treatment, respiratory conditions, and lung disease.
