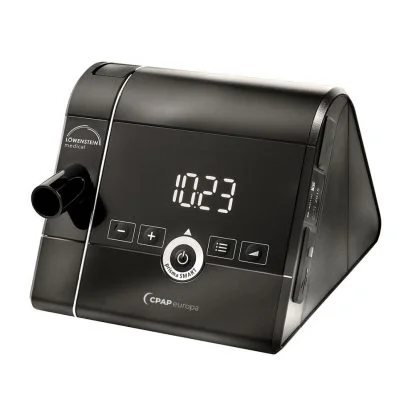

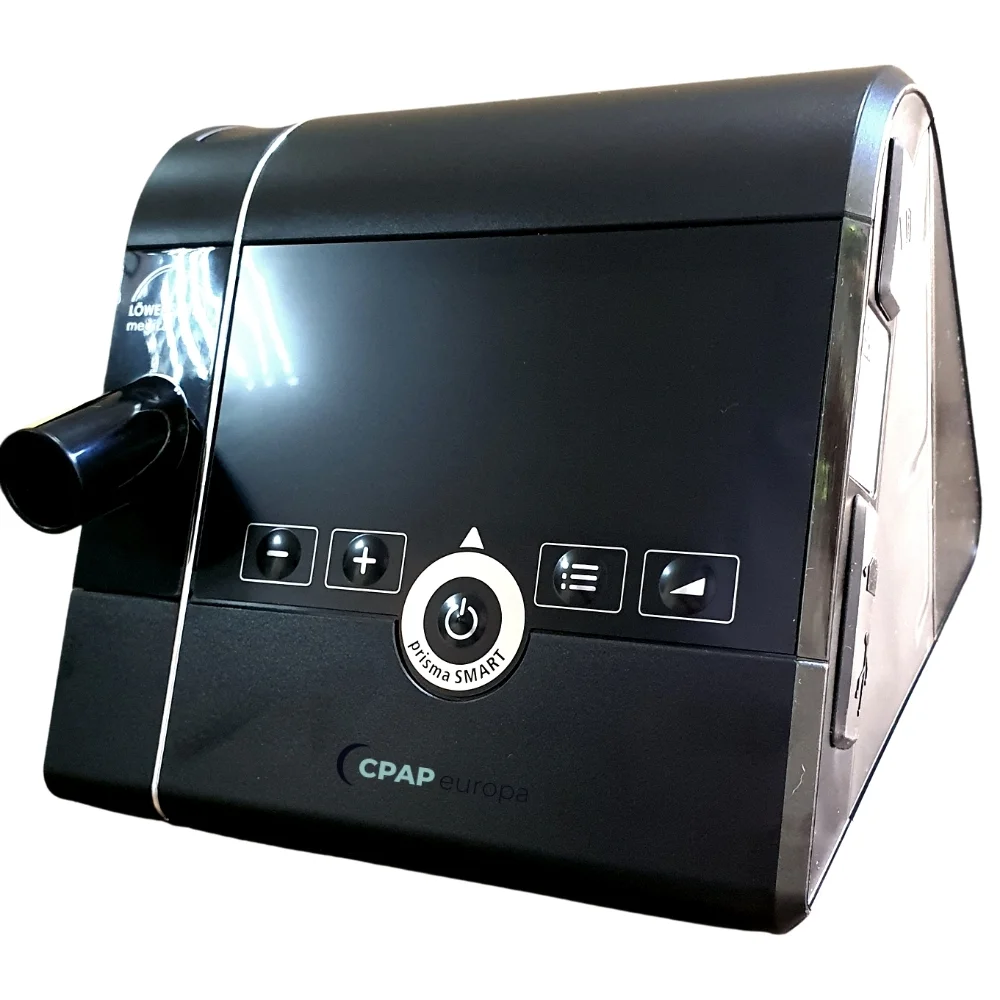

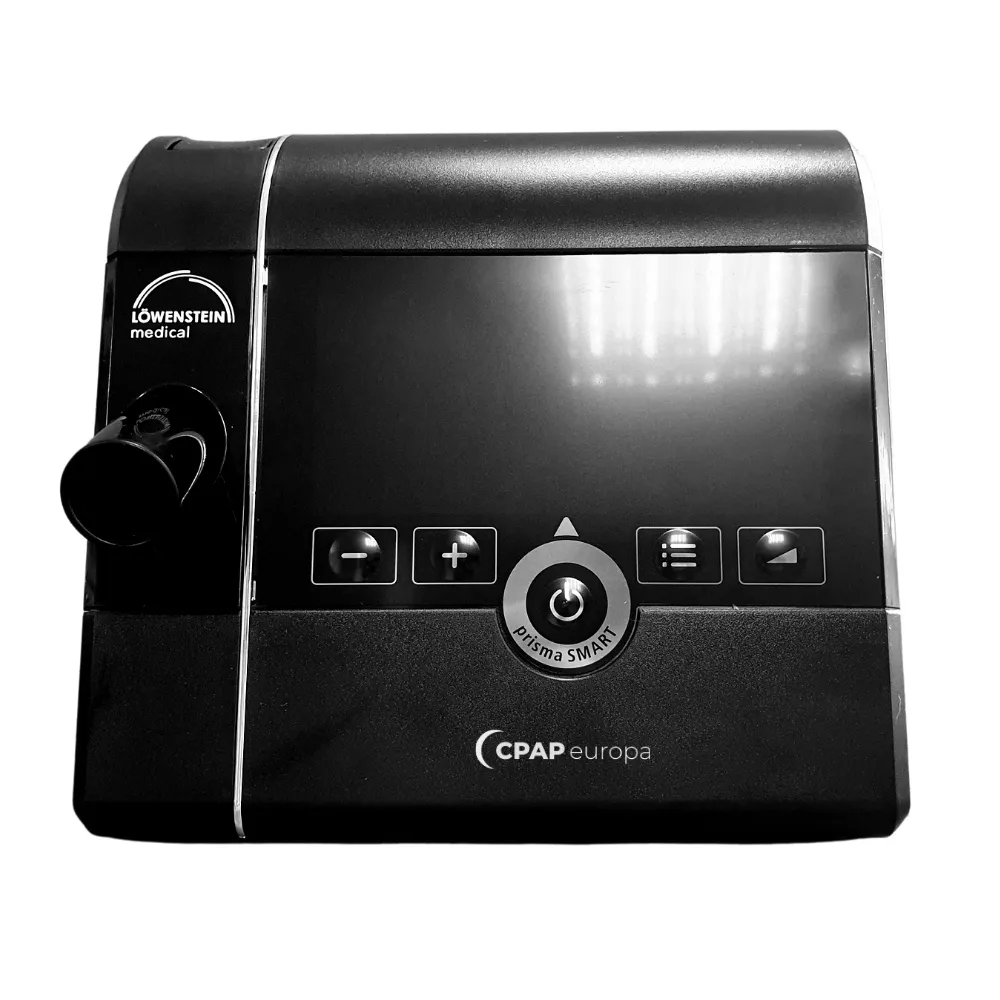

Prisma SMART Auto CPAP Machine

From:  599.00

Introducing Lowenstein Prisma SMART CPAP machine, designed for therapy flexibility and comfort for treatment of Obstructive Sleep Apnea (OSA). With assistance from Forced Oscillation Technique (FOT), Prisma reliably distinguishes between obstructive and central apnea. In response to events, the APAP therapy device automatically and continuously adjusts pressure exactly to your needs. Because the APAP modes can be combined with the gentle pressure relief softPAP, offers an unparalleled degree of therapy flexibility and patient comfort.

  • Unheard-of silence
  • Standard operating concept and clearly structured, target group-oriented menus (for patients and experts)

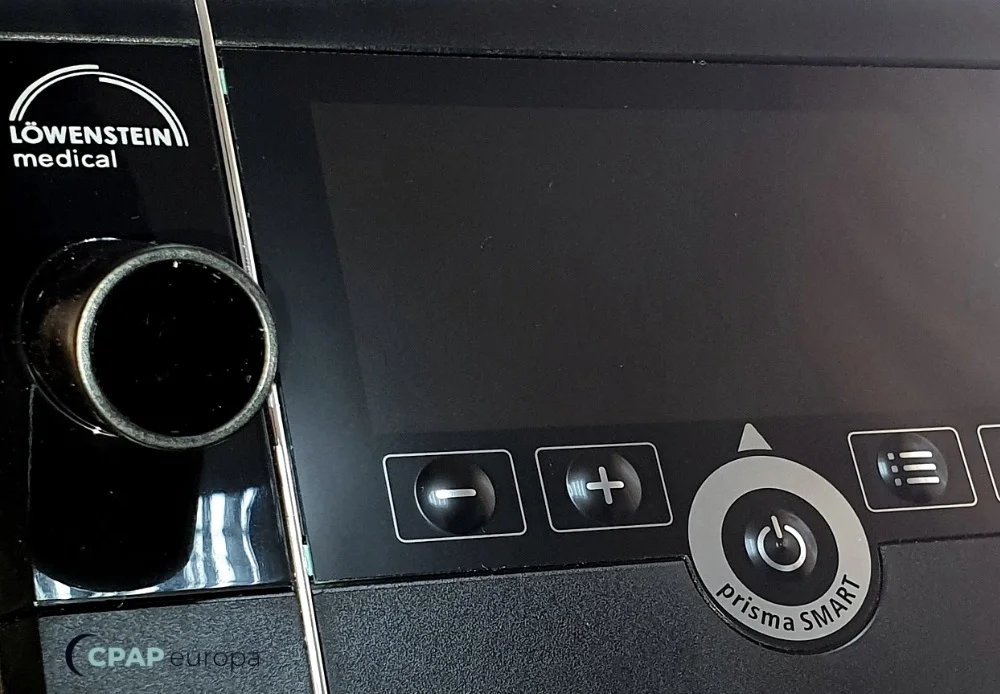

  • Segment display – highly visible presentation of required information
  • prismaLINE range of accessories
  • Two different APAP dynamics in prisma SMART – the right therapy for every patient
  • Familiar features such as recognition of Cheyne-Stokes respiration and Forced Oscillation Technology (FOT) in the entire prismaLINE

Pressure Level: 4 cmH2O to 20 cmH2O
German quality built to last!

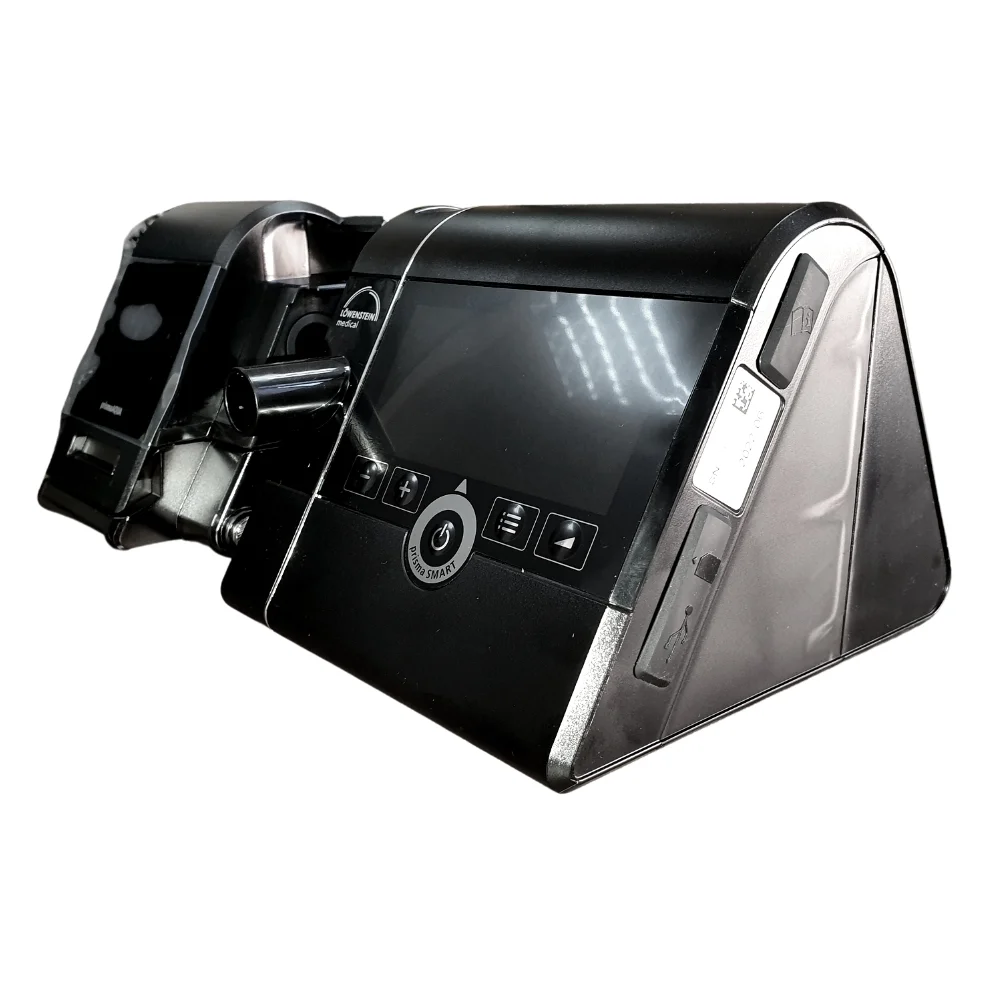

Optional Humidifier can be purchased here.

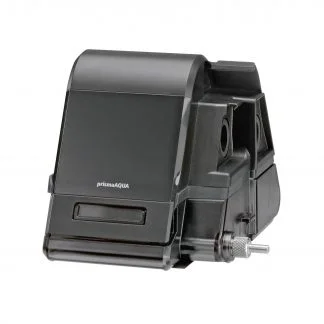

Prisma Humidifier



The new Prisma SMART Auto CPAP Machine continues the tradition of high-quality auto-CPAP devices from Löwenstein Medical and offers the new option of classic or dynamic pressure regulation for personalized respiratory therapy. The familiar pressure relief softPAP can be activated at any time. Classic, simple user navigation with an easy-to-read display. The standard supply schedule includes a pollen filter. The device can be combined with the well-known humidifier prismaAQUA.

Devices of the WM 090 TD type are pressure-controlled, non-invasive, non-life-supporting therapy devices for treating sleep-related breathing disorders (SRBDs) using a mask. The devices are used on persons weighing 30 kg or more. CPAP mode can be used on persons aged 3 years upwards. The device may only be used on a physician’s instructions. (auto)CPAP mode provides positive airway pressure for treating obstructive sleep apnea in patients who breathe spontaneously. Devices of the WM 090 TD type are used in clinical facilities and in the domestic environment. In the domestic environment, the devices also accompany the owner on trips away.

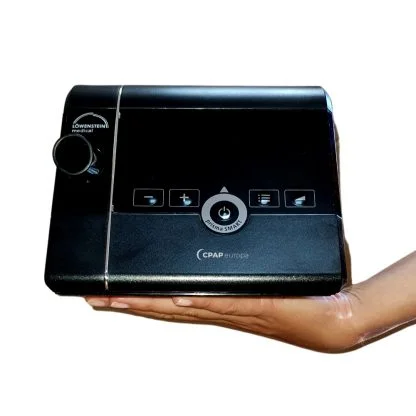

Prisma SMART Auto CPAP Machine, Löwenstein Medical-13

Description of function

A blower takes in ambient air through a filter and pumps it to the patient at therapy pressure through the patient circuit and the patient/ventilator interface. The user interface is for displaying and setting the available parameters. Therapy data are saved on the SD card and can be evaluated using PC software.

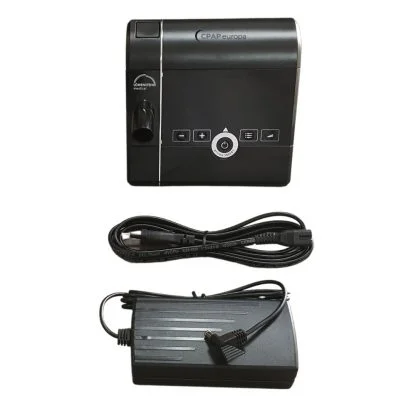

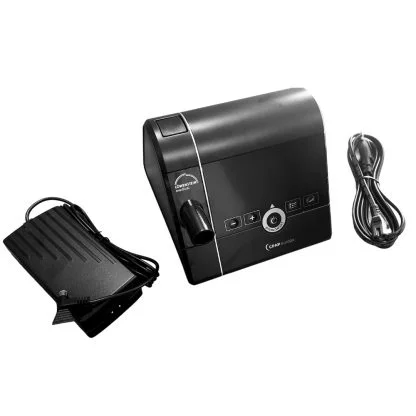

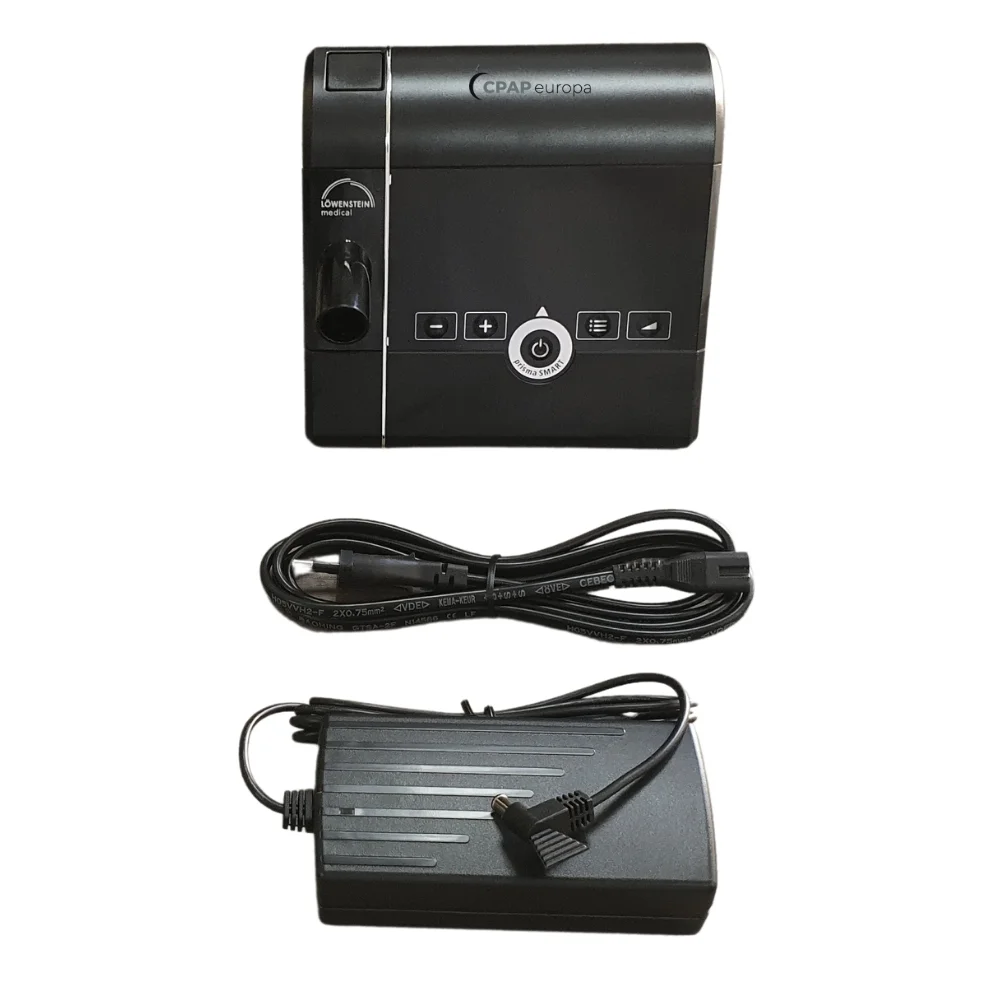

In the box:

  • Prisma SMART Auto CPAP
  • Tube Breathing
  • Carry Case
  • Disposable Filter
  • User Manual in English, Spanish and German

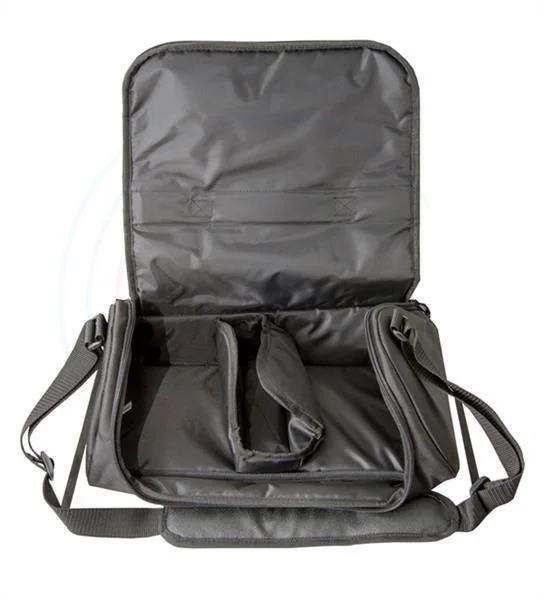

PrismaBAG premium

PrismaBAG premium is high-quality and compact carry bag for the CPAP machine, the humidifier, cables and tubing. The bag is designed to match the shape of the prismaLINE devices exactly.

Lowenstein Prisma Bag Permium CPAP Carry Bag



Energy supply

Energy supply

Operating the device outside the specified energy supply may injure the user and damage
the device.
⇒ Operate the device only with the power supply unit provided on voltages from 100 V
to 240 V.
⇒ Use the DC adapter for operation on voltages of 12 V or 24 V.
⇒ Keep access to the power supply connector and the power supply free at all times.



Auto CPAP Prisma SMART Components -

1 Humidifier connection with cover
2 Release catch
3 Control panel with display
4 Interface for connecting the communication module
5 Handle
6 Filter compartment
7 Connection for power supply cable
8 Breathing tube with connection for mask
9 SD card slot
10 Power supply unit
11 SD card
12 Power cord
13 Device outlet port

Technical specifications

Technical specifications

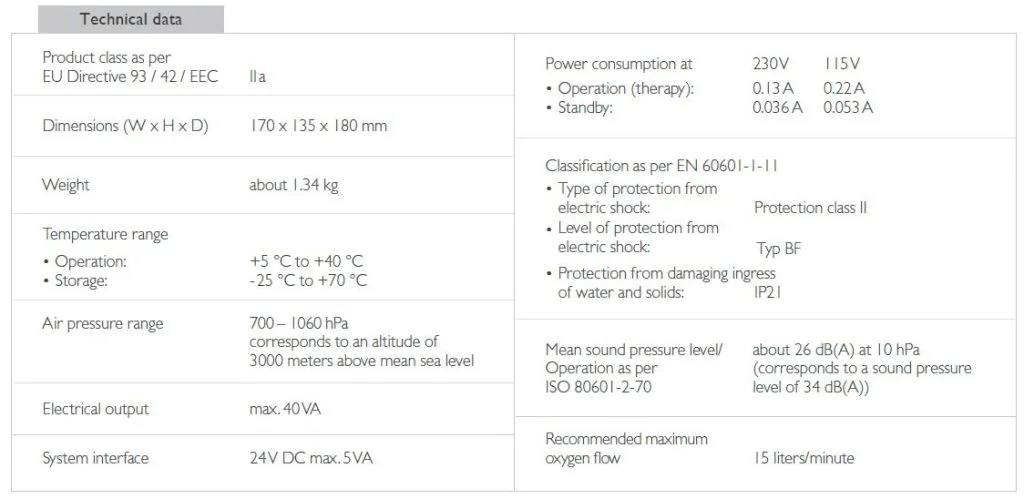

Lowenstein Prisma SMART Auto CPAP Techical data - cpap europa
