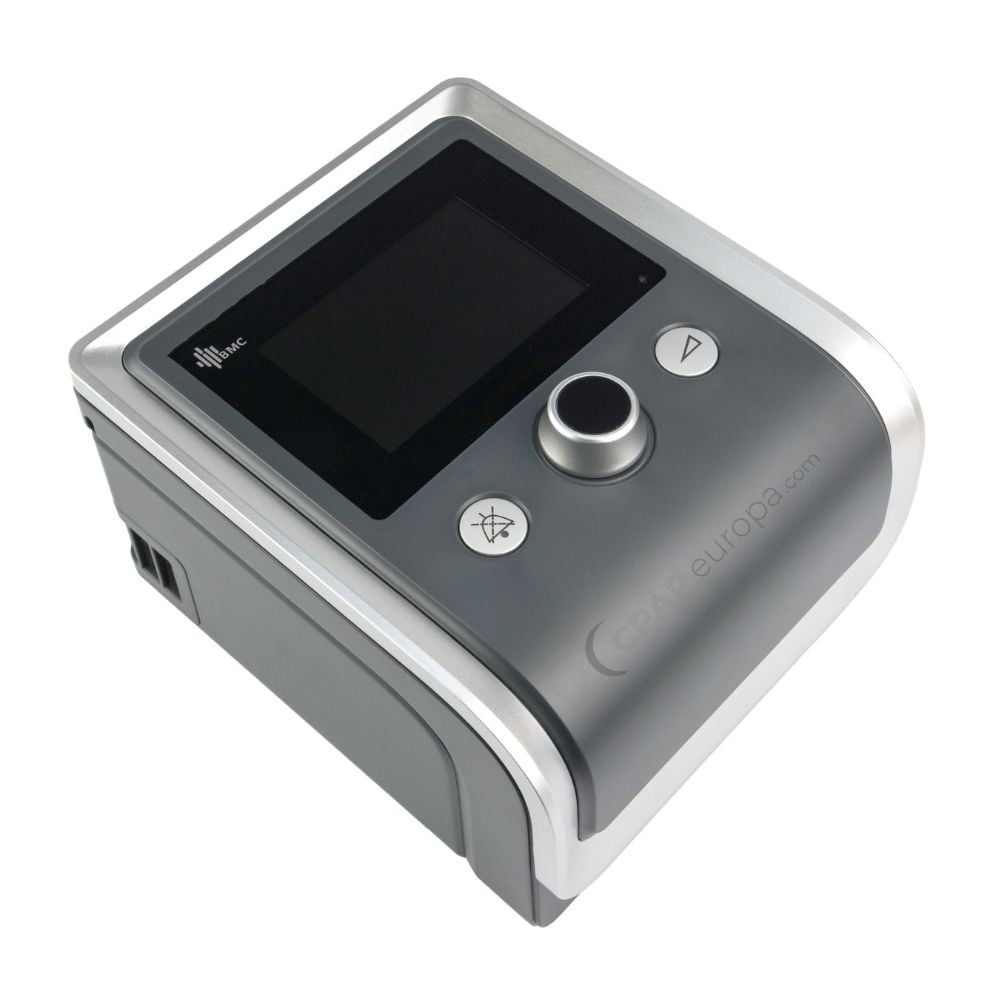

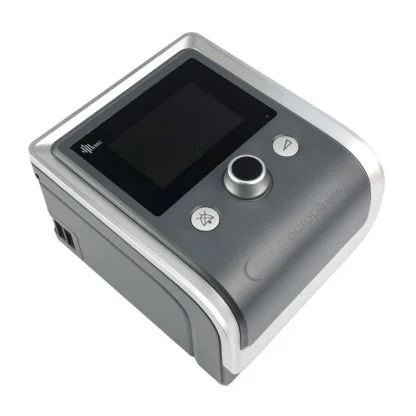

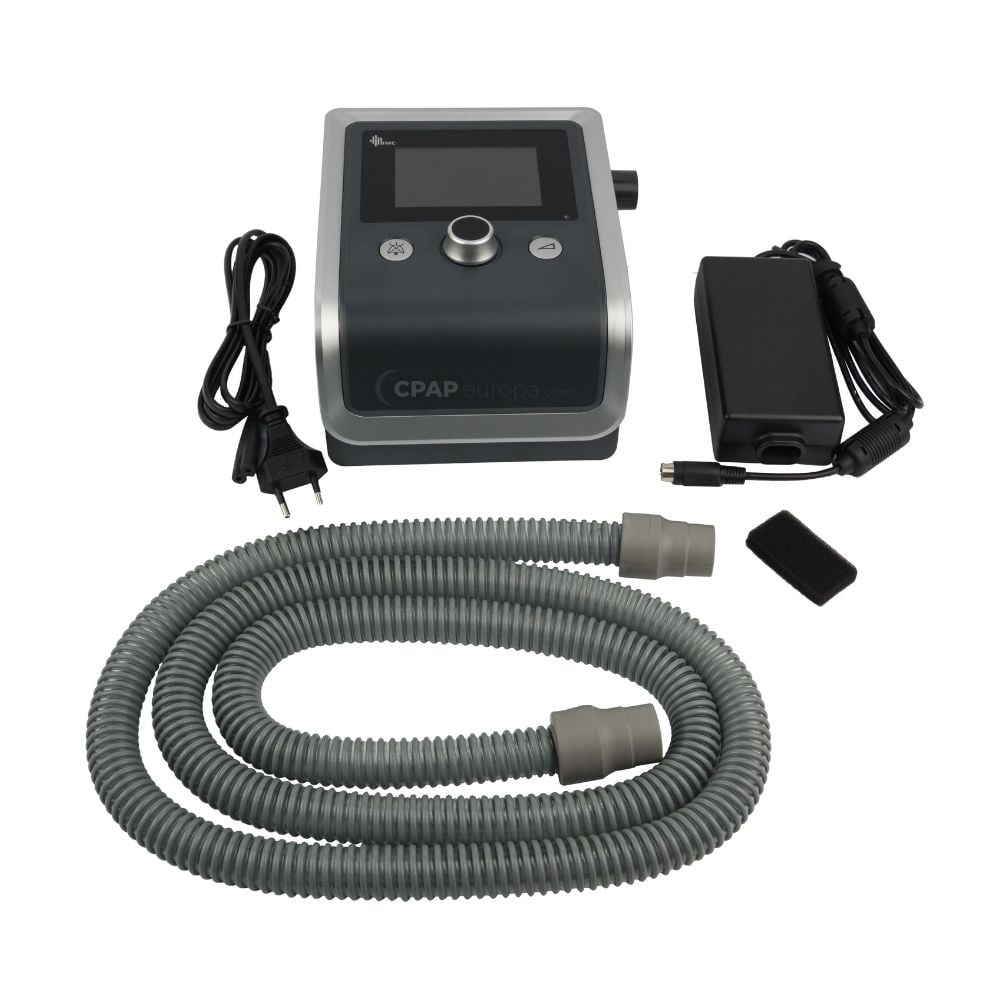

RESmart BiPAP GII T-25T
Resmart GII BiPAP System T series auto bi-level devices are ideal for sleep apnea patients experiencing difficulties adjusting to a fixed-pressure CPAP device. Inside the GII BiPAP are advanced auto bi-level air generators with two different, adjustable pressures. If you are looking for a reliable and durable auto BiPAP for a more comfortable therapy, then the GII is probably one of the best solutions you can find on the market.
RESmart BiPAP GII T-25T
The RESmart BiPAP GII is an auto bi-level machine used primarily by patients with respiratory insufficiency and obstructive sleep apnea. This auto bi-level device is specifically engineered by BMC Medical to maximize patient-device synchrony. It tracks events on a breath-by-breath basis to ensure ultra-precise amount of bi-level pressure while guaranteeing your comfort throughout the night. The RESmart T-25 model supports CPAP, S, T, and S/ modes.
- Real-time display: Tidal Volume (Vt), Res Rate, Min Vent, Leak
- Fast and intuitive operation
- State-of-the-art detection technology for accurate and comfortable treatment
- Personalised sensitivity settings for better and more comfortable treatment.
- Auto on / Auto off
- Alarm in the event of a sudden power failure
- Alarm mode when the mask / tube is offline
- Automatic leakage and altitude adjustment
- Ergonomic design
ECO Smart Technology
The ECO Smart heating system boasts an innovative dual water chamber design providing optimum humidity and temperature during therapy. ECO Smart delivers the optimized humidity level through the heating chamber, while ensuring real time compensation and water quantity control throughout the night. This smart technology will also help you keep the water bills low thanks to its high efficiency rating.
3.5-inch Color LCD Display
The LCD color display of the RESmart GII shows real-time pressure and flow wave data.
Easy data access whenever you need it
With RESmart GII and it’s built-in iCode and SD card records you can viewed and evaluate your sleep apnea treatment using the REsmart PCsoftware or BMC+ iCode smart phone App
Ti Min/Ti Max Ensure inspiration time
Ti Min/Ti Max feature for more effective treatment compared to other competitive bi-level devices of the same class.
- Compliance Data is encoded by QR code
- Google play and APP store apps are available
- Dynamic parameters adjustment
- Multiple data retrieval (SD Card/ iCode II/ WiFi)
2-Year Manufacturers Warranty.
|Modes||СРАР, S, T, S/T|
|Max therapy pressure||25 cmH2O|
|Display||3.5 inch LCD|
|Dimensions||170 х 196 х 118 mm|
|Weight||< 1.5 kg|
|Operating temperature||5°C to 35°C|
|Operating humidity||15% to 93%|
|Atmospheric Pressure||760 to 1060 hPa|
|SD Card||4 GB|
|Power consumption||100 – 240 V AC, 50/60 Hz, 2.0 A max|
|Type of Protection Against Electric Shock||Class II|
|Degree of Protection Against Electric Shock||Type BF Applied Part|
|Degree of Protection Against Ingress of Water||IP22|
|Pressure Range||IPAP: 4.0 ~ 25.0 cm H2O (only applies to T-25S, T-25A, T-25T);|
EPAP: 4.0 ~ 25.0 cm H2O (only applies to T-25S, T-25A, T-25T, T-30T); in 0.5 cm H2O increments.
CPAP Mode: 4.0 ~ 20.0 cm H2O
|Pressure Display Accuracy||± (0.8 hPa + 4%)|
|Static Pressure Stability||± 0.5 hPa|
|Ramp||0 to 60 minutes|
|Sound Pressure Level||<30 dB, when device working at pressure of 10 hPa|
The margin of error for SpO2 between 70% and 100% is ±3%. No strict accuracy requirements for SpO2 below 70%.
|Pulse Rate||Range: 40-240 bpm|
Margin of Error: ± 3%
|Wavelengths||Red: 663 nanometers|
Infrared: 890 nanometers
|Maximal Optical Output Power||Less than 1.5 mw maximum average|
|Tube||Length: 6 ft. (1.83m)|
|Heater Settings||1 to 5 (95 to 167°F/ 35 to 75°C)|
|Maximum Operating Pressure||30 hPa|
|Pressure Drop with Humidifier||< 0.4 hPa at 60 LPM flow|
|Humidifier Performance||Humidity Output: No less than 10 mg H2O/L|
Environmental Conditions: Maximum airflow, 35°C, 15% relative humidity
|Maximum Delivered Gas Temperature||< 43°C|
Q. What is a BiPAP device used for?
A. A BiPAP device is primarily used in sleep apnea treatment, respiratory conditions, and lung disease.
Q. Where are RESmart devices manufactured?
A. The RESmart CPAP and BiPAP devices by BMC Medical are manufactured in China. Headquartered in Beijing, China, BMC Meical is the leader in the development of home respiratory care devices in China.
Q. What are the main benefits of using a mid-range RESmart CPAP device instead of a higher-range model?
A. The RESmart respiratory care devices such as the GII are often preferred by customers looking for reliability, quiet operation and simplicity of settings – all without breaking the bank.
Q. Does the RESmart GII BiPAP come with documentation in languages other than English?
A. Yes. You can download the documentation in a language other than English from the BMC website.
